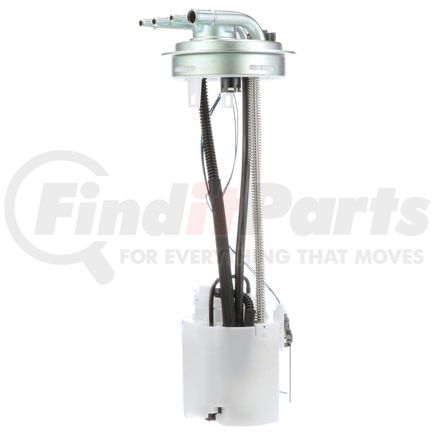

(888) 312-8812 Login SignupDELPHI FG0353 Fuel Pump Module Assembly
MSRP: $569.20
$33099
Save $238.21
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 16
DELPHI FG0353 Part Description
DELPHI FG0353 Specifications
Product Attributes
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Item Grade | Standard Replacement |
| Vapor Pressure Sensor | Yes |
| System Pressure | 54 psi |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 73 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 4 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 250 82 |
| Resistance Ohms Full | 40 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 11 68 |
| Average Flow Rating | 28 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 54 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | Yes |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 9026102080 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604095164 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0353 Part Interchanges
| Brand | Part Number |
|---|---|
| General Motors | 19167491, 19167492, 25350280, 25384376, 25384377, 88965393, 19133461, 19133462, 19303401, 19303402, 19332060, 19332061, 88965374 |
| N/A | 9535130, P76226M, USEP3616M, D0240M |
| ACDelco | MU1313, MU1419, M10010, M10104, MU1420 |
| Carter | P76244M, P76250M |
| Airtex | E3616M |
| Spectra Premium | SP6353M |
| Bosch | 67517 |
| DENSO Auto Parts | 953-5130 |
| AutoZone | EFG0353 |
| EVO Driveline | AFS0964S |
| Precision Fuel | A30359 |
DELPHI FG0353 Fits Vehicles
- GMC Sierra 3500 Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- GMC Sierra 3500 (2004-2006)
- Chevrolet Silverado 3500 (2004-2006)
