STEMCO 373-0123 Part Description
Manufacturer
Features & Benefits
- Support ring resists distortion from uneven flange torque during mounting
- Sealing body grips scored hub bores with improved hold
- Limits oil misting on higher-speed long-distance routes
- Helpful during seasonal hub teardowns or tire exchanges
- Compatible with mineral or synthetic gear oils in modern axles
- Aligns smoothly during reassembly in tandem-axle layouts

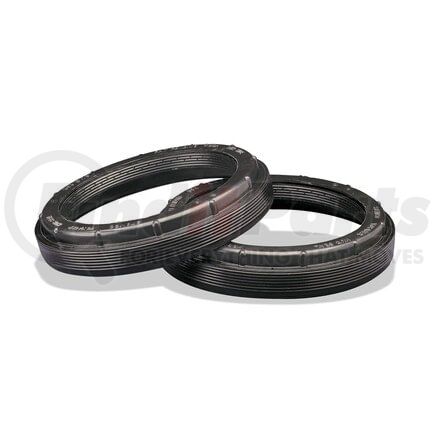

Stemco Drive Axle Wheel Oil Seal
The Stemco Drive Axle Wheel Oil Seal protects lubricant retention at the wheel end by forming a tight interface between the axle ring and hub components. Its PTFE sealing structure resists wear caused by rotational contact while working to keep out moisture and road contaminants. The 6.008-inch bore and 4.25-inch axle-ring dimensions allow it to seat firmly in hubs that experience long duty cycles with substantial heat exposure. Its one-inch width contributes to a stable footprint during installations where lateral loading shifts throughout the day. The Stemco 373-0123 supports wheel-end lubrication systems focused on consistent containment.
STEMCO 373-0123 Specifications
Product Attributes
| Width | 0.995 IN |
| Bore Diameter | 6.008 IN |
| BEARING GUIDE | 570-0025 |
| FLEET HUB TOOL | 551-5401 |
| GASKET NUMBER | 330-3118 |
| HUB CAP WITH GASKET | 340-4195 |
| INNER BEARING CONE | HM518445 |
| INNER BEARING CUP | HM518410 |
| INSTALL HANDLE/BODY | 551-0001 |
| Notes | also Eaton P-22 and Meritor TP. Hub cap tool #570-7008. |
| OUTER BEARING CONE | HM518445 |
| OUTER BEARING CUP | HM518410 |
| Seal Type | L1 |
| SHOULDER OUTER DIAMETER | 4 .250 IN |
| SPINDLE SHOULDER OUTER DIAMETER | 4 .250 IN |
| SHOULDER OUTER DIAMETER | 4.25 |
| SPINDLE SHOULDER OUTER DIAMETER | 4.25 |
| Position | Trailer |
| Series | Voyager |
| Width | 1 in (2.54 cm) |
| Oil Bath Seal Bore Diameter | 6.008 in. |
| Spindle Shoulder O.D. (in.) | 4-1/4 in (10.8 cm) |
| Oil Bath Seal Axle Ring Width | 4-1/4 in (10.8 cm) |
| Seal O.D. | 4 to 4.99 in |
Additional Information
| Harmonized Tariff Code (HTS) | 4016931050 |
| UPC | 00703832178397 |
| VMRS Code | 018004001 |
STEMCO 373-0123 Part Interchanges
| Brand | Part Number |
|---|---|
| Meritor | A1205K2351, A1205P1888, A1205Q1889, A1205Y1975 |
| National | 370065A, 376590A, 380065A, 386590A |
| Eaton | 815215 |
| Fruehauf | 530480, ACA5207, ACA52071, ACE55171, ACF006562, ACF6562, AXA0043 |
| OEM | 42622, 46390 |
| Trailmobile | 4131144, 4131164, 4131211, 4131236 |
| Heil | 9022299868 |
| NOK | 302, 851, UZ0302E0 |
| Great Dane Trailers | 42525, 47555 |
| Pioneer Weston | 302200, 302402 |
| Triseal Corp | 65262U, 65262W, 69520, 69596, 70596 |
| OEM Part Number | 42622, 46390 |
STEMCO 373-0123 Cross References
We have 28 alternatives for the 373-0123 by STEMCO:
- TORQUE PARTS TR0123
- TORQUE PARTS TR42623
- NAVISTAR ZCP3730123
- AMSTED SEALS AND FORMING 70598T
- TRISEAL 70596T
- MERITOR MER0123
- TRISEAL 69699
- TRAILMOBILE 4131151
- CHICAGO RAWHIDE 43751
- NATIONAL 370037A
- MECHANEX/BARRIER 749400P
- NOK 853
- CHICAGO RAWHIDE CLASSIC 43752
- CHICAGO RAWHIDE PLUSXL 43754
- PIONEER WESTON 304404
- GMC/VOLVO 698768
- NAVISTAR 414467C91
- MERITOR A1205N898
- BOSS SEALS B43752
- VICTOR SS46847
- CHICAGO RAWHIDE 43753
- TRISEAL 70599
- TRAILMOBILE 4131160
- NATIONAL 370338A
- MECHANEX/BARRIER HS43753
- TRAILMOBILE 4131213
- TRISEAL 65298U
- TRISEAL 65298W
STEMCO 373-0123 Manufacturer Information
STEMCO® is a recognized global leader in manufacturing and supplying a comprehensive line of high-performance systems and components to the commercial vehicle industry. Its wide range of products includes wheel-end components, such as fasteners, hubcaps, bearings, seals, and mileage counters, and brake parts, which include brake drums, brake pads, and adjusters. It also offers suspension products like spring pins, king pin kits, polyurethane suspensions, tie rod assemblies, and mount and blocking components. All these products are made to the highest quality and safety standards to ensure superior performance and maximum durability even when used in the harshest of conditions. STEMCO is ISO-9001:2015 certified.
