(888) 312-8812 Login SignupGATES 33168 Green Stripe Heavy-Duty Engine Coolant Thermostat
Tap to view 2 more
SHIPS TODAY
$6549
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
GATES 33168 Part Description
Manufacturer
Product Description

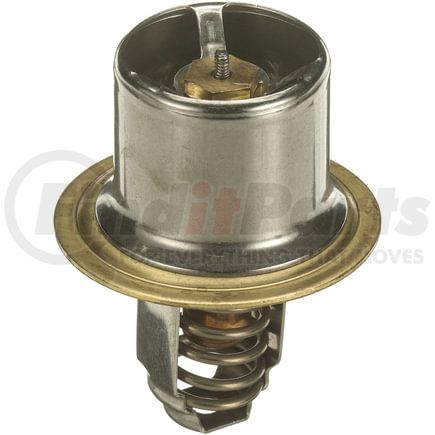

Green Stripe Heavy-Duty Engine Coolant Thermostat
Application Summary
1997 Mack, CL Series, Mack V-8 16.0 L Diesel, Thermostat
Features & Benefits
- Heavy-gauge brass and stainless steel construction for corrosion resistance
- Quality-controlled factory calibration assures accuracy of opening and closing, regardless of pressure changes
- Temperature sensitive heat motor provides consistent valve response for smooth performance and precise engine cooling
- Jiggle pins for air venting, seals and gaskets make these thermostats equivalent to the original equipment parts
GATES 33168 Specifications
Product Attributes
| Type | Heavy-Duty Thermostat |
| Start to Open Temperature | 180 FA |
| Design | Top By-Pass |
| Material | Stainless Steel, Copper, Brass |
| Height | 3.16 IN |
| Sealing Flange Outside Diameter | 2.46 IN |
| Flange Thickness | .06 in |
| Flange Height | 1.479 IN |
| Height Between Flanges | 1.669 IN |
| Jiggle Pin Weep Hole | No |
| Jiggle Pin Check Valve Quantity | 0 |
| Gasket Quantity | 0 |
| Seal Quantity | 0 |
| Installation Tool Included | No |
| Start to Open Temperature | 82 CE |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8481809015 |
| UPC | 00072053024296 |
| VMRS Code | 042006000 |
| UNSPSC | 41112209 |
GATES 33168 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 143-0699 |
| CST | 4408 |
| Motorcraft | RT-218 |
| Stant | 14408, 31818, S-440-180 |
| Tridon | 2680, 870080 |
| Carter | 26-2778 |
| White | 1601177, 1601178 |
| ACDelco | 12TH7D |
| Dayco | 83796 |
| Motorad | 870080 |
| Carquest | 31818 |
| Robertshaw | 440-180 |
| Case Tractor | A21033 |
| Delco Harrison | 132-39 |
| Dole | DV-248-D |
| Fleetrite | ZAM-2768 |
| General Motors | 12301556 |
| International Harvester (IHC) | 1801192C91, 619735C1, 619736C1, 672566C1, 672568C1, 672569C1, 684739C1, 687014C1, 860481R1, 860481R91 |
| Reo Trucks | 1601177, 829A5 |
| Waltham | W360-180 |
| Mack | 215SB166P3, 657GC134P3, 657GC319AP80 |
| Edelmann | 2064-180 |
| Parts Master | 31818 |
| NAPA Belts/Hose | 33168 |
| Ideal Tridon | 31818 |
| NAPA | 360-180 |
| Scoville | VD111701, VD111900, VD111900-B |
| Standard Thomson | 360-180 |
| CARQUEST or Stant | 14408 |
| Murray Temperature Control | 277288 |
GATES 33168 Fits Vehicles
- Mack CL (1997)
- International Scout (1961-1969)
GATES 33168 Cross References
We have 1 alternatives for the 33168 by GATES:
