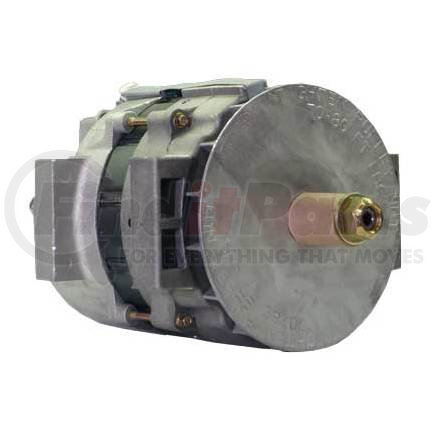

| Sales number | BLP2306GH 110-810 |
| Series number | BLD/P |
| Notes | GENERIC HEX SHAFT BRUSHLESS |
| System voltage | 12 |
| Output | 140 |
| Mounting style | PAD |
| Dimensions in | INCHES |
| Rotation | CLOCKWISE |
| Housing coating | RAW |
| UL Approved | No |
| Mounting bolt size | F .417-.427 R .489-.479 |
| Positive stud size | 5/16-24 UNF |
| Negative stud size | 1/4-28 UNF |
| Rectifier location | INTERNAL |
| Shaft diameter | 7/8 INCH |
| Excitation type | Self Excite |
| Regulator location | Integral |
| Regulator number | 8RG2120 |
| Diode trio | No |
| Pulley included | No |
| Lamp driver | Yes |
| Adjustable regulator | No |
| Remote sense | No |
| Smart check | No |
| Batteryless | No |
| Volts | 12 |
| Amp | 140 |
