(888) 312-8812 Login SignupTRAKMOTIVE GM-8519 CV Axle Shaft
$23749
Limited availability at this price!
In Stock
Get it by Monday, Dec 22

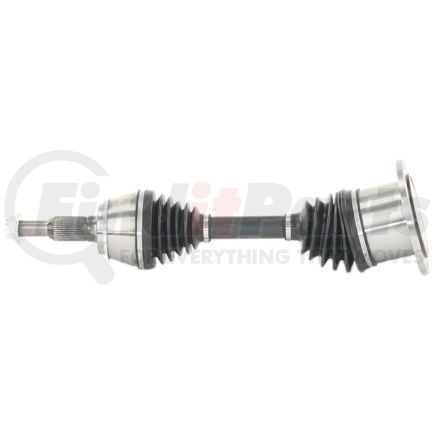

TRAKMOTIVE GM-8519 Part Description
CV Axle Shaft
TRAKMOTIVE GM-8519 Specifications
Product Attributes
| ABS Ring Tooth Count | 0 |
| ABS Ring Type | N/A |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | N/A |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | N/A |
| Axle Nut Hex Size (mm) | 33 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | N/A |
| Axle Nut Length (mm) | 38 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27x2 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Bolt-on |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 8 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 36 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.61 |
| Overall Compressed Length (mm) | 582 |
| Overall Extended Length (in) | 25.61 |
| Overall Extended Length (mm) | 651 |
| Axle Nut Socket Size | 33 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00840140506587 |
TRAKMOTIVE GM-8519 Part Interchanges
| Brand | Part Number |
|---|---|
| OEM Part Number | 84649888 |
| TrakMotive | GM-8519 |
TRAKMOTIVE GM-8519 Fits Vehicles
- GMC Sierra 2500 HD (2020-2022)
- GMC Sierra 3500 HD (2020-2022)
- Chevrolet Silverado 2500 HD (2020-2022)
- Chevrolet Silverado 3500 HD (2020-2022)
TRAKMOTIVE GM-8519 Customer Reviews
No reviews yet
Be the first to review this product!
TRAKMOTIVE GM-8519 Manufacturer Information
Based in Redlands, CA, TrakMotive® is a North American distributor of aftermarket CV axles and shaft assemblies for light duty trucks and ATVs. It offers a wide selection of premium-quality axles as well as specialty axles for lifted vehicles and fleet/rideshare applications. The company also supplies motorized window regulators for the aftermarket. TrakMotive products are engineered to the highest standards, ensuring they meet or even exceed original equipment manufacturer specifications in fit, form, and function. All products are manufactured in-house at ISO 9001:2015 and IATF 16949.2016-certified facilities and under supervision by the world’s top engineers and technicians, ensuring quality that satisfies the needs of the company’s most demanding customers.
