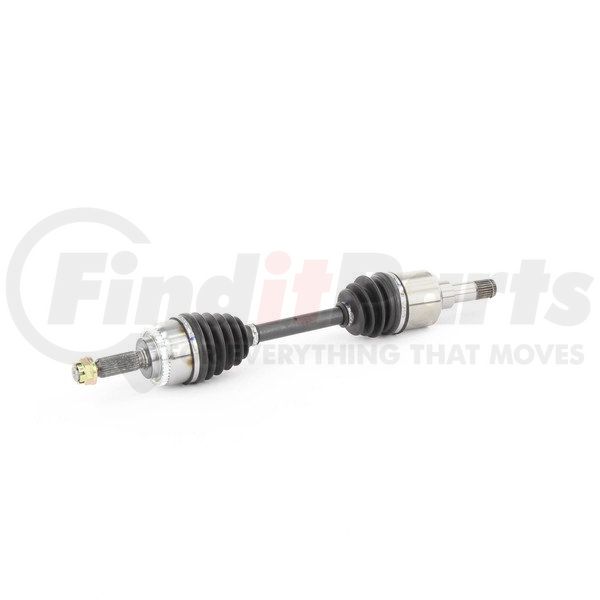

(888) 312-8812 Login SignupTRAKMOTIVE MI-8023 CV Axle Shaft
Tap to view 1 more
$10499
Limited availability at this price!
In Stock
Get it by Monday, Dec 22
TRAKMOTIVE MI-8023 Part Description
TRAKMOTIVE MI-8023 Specifications
Product Attributes
| ABS Ring Tooth Count | 43 |
| ABS Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .83 |
| Axle Nut Height (mm) | 21 |
| Axle Nut Hex Size (in) | 1.17 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.33 |
| Axle Nut Length (mm) | 35 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 25 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.61 |
| Overall Compressed Length (mm) | 625 |
| Axle Nut Socket Size | 30 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084050236 |
TRAKMOTIVE MI-8023 Part Interchanges
| Brand | Part Number |
|---|---|
| ARC | 80-3295 |
| EMPI | 80-4050 |
| Car Components Technologies (CCT) | 8767 |
| Mevotech | CV2215 |
| Carquest | 410124, 800136 |
| USA Industries | 7032669, AX-3266, AX-32669 |
| American Remanufactured | 40-18963S |
| Diversified Shafts Solutions | 9600N |
| Drive Tech America | MI-8963A |
| Fenwick | CV3112 |
| CARDONE Reman | 60-3103, 60-3164, 66-3164, MP3103 |
| IMC | 40737031, 40737054 |
| OEM Part Number | MR165583, MR165585, MR165597, MR430485, MR430491, R430491 |
| Altrom Group | 650509 |
| ODM | MI-8-8516A |
| TrakMotive | MI-8023 |
| ProTech | EA10505, GM30521 |
| N/A | 410124, NCV12541, 72511, 239023 |
TRAKMOTIVE MI-8023 Fits Vehicles
- Mitsubishi Eclipse (1995)
- Eagle Talon (1995-1998)
- Dodge Avenger (1995-2000)
- Chrysler Sebring (1995-2000)
TRAKMOTIVE MI-8023 Customer Reviews
No reviews yet
Be the first to review this product!
