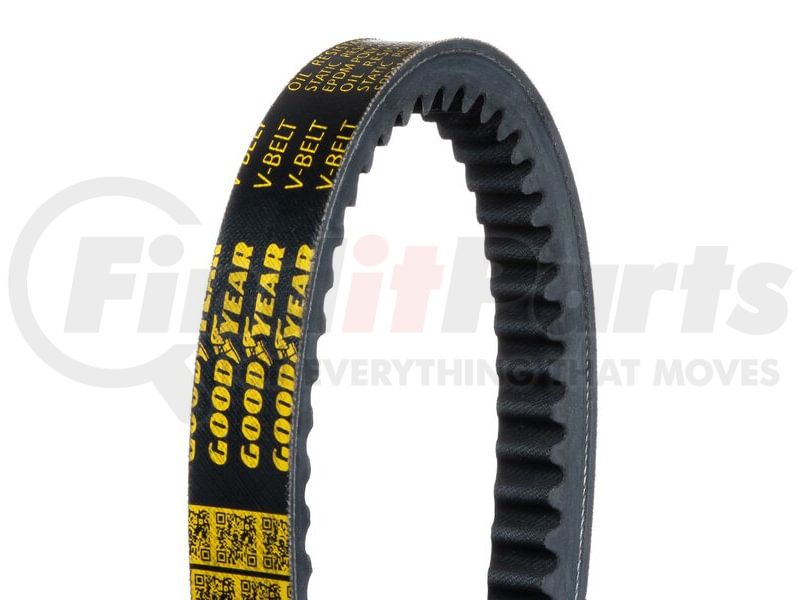

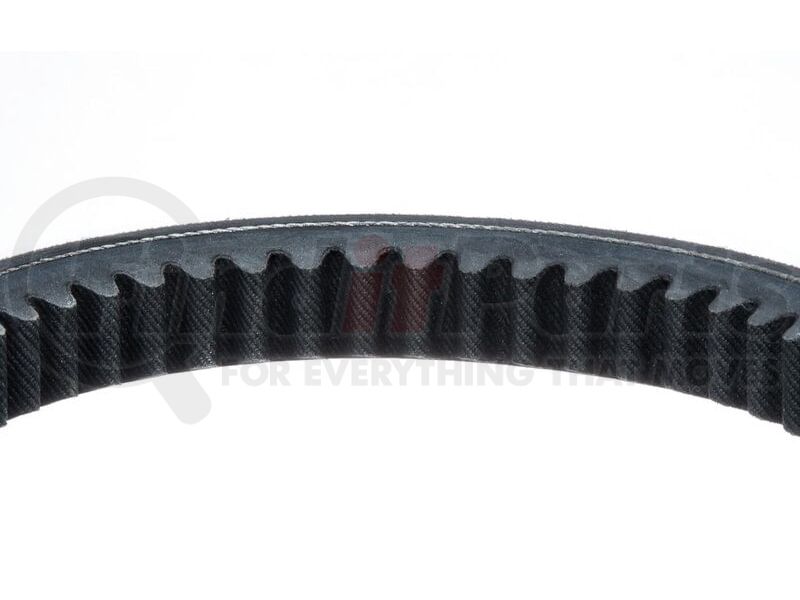

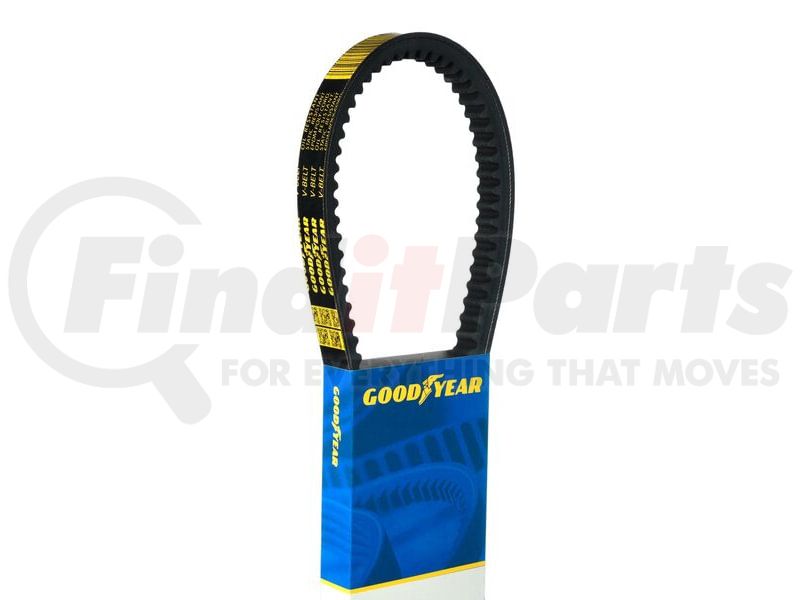

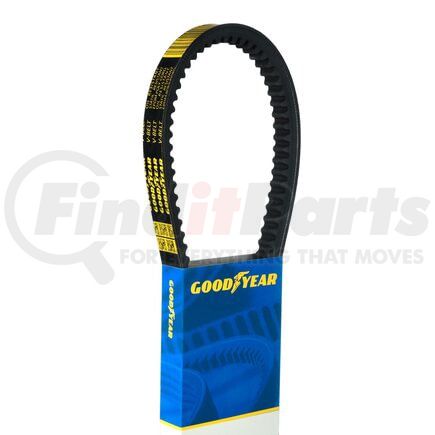

GOODYEAR BELTS 28583 Accessory Drive Belt - V-Belt, 58.3 in. Effective Length, EPDM

$28.49

Limited availability at this price!

In Stock

Get it by Wednesday, Dec 17
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

GOODYEAR BELTS 28583 Part Description

Manufacturer

GOODYEAR BELTS

Product Description

V-Belt

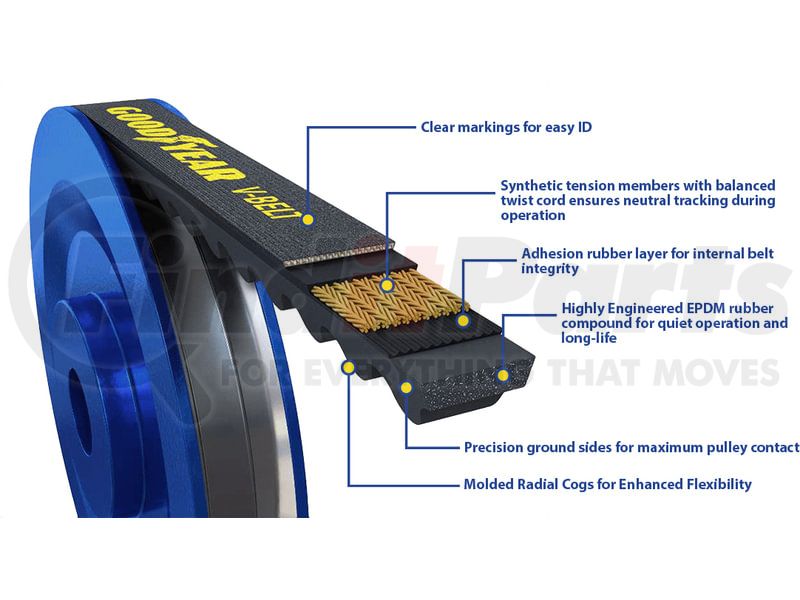

Features & Benefits

  • Meets or Exceeds OEM Specifications
  • EPDM Rubber Compound known for its excellent resistance to heat, ozone, weathering, and abrasion, ensuring long-lasting durability in automotive applications.
  • Long-life EPDM Rubber Compound
  • Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
  • Radial Cog design to eliminate stress risers that can cause cracking
  • Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
  • Proprietary rubber formulation for quiet operation
  • Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
  • Precision ground sides for maximum pulley contact
  • Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
  • High strength tensile cords designed for minimal tension decay and low maintenance
  • Limited Lifetime Warranty

GOODYEAR BELTS 28583 Specifications

Product Attributes

V-belt Profile 20A
Top Width (mm) 21.5 MM
Top Width (in) 0.846 IN
Thickness (mm) 12.5 mm
Thickness (in) 0.492 In
Rib Angle 36⁰ DD
Profile Series 28
Outside Circumference 1495 mm
Outside Circumference 58.87 in
Effective Length 1481 mm
Effective Length 58.3 in
Cord Material Polyester
Item Weight (lbs) 0.86 LB
Item Weight (kg) 0.39 KG
Belt Material EPDM
Angle 36 DD
Color Black
Construction Cogged
Cross Section Designation 20A
Grade Type OE Performance
Notched Yes
Profile Type 28
Sae Standard J636
SAE Standard J637
Strand Quantity 1
Thickness 0.492 IN
Thickness 12.5 MM
Top Cogged No
Top Width 0.846 in
Top Width 21.5 mm
Type Automotive V-Belt

Additional Information

Stock Status S
Warranty Time 1
Warranty Special 1 Year Limited Warranty
Warranty Time UOM YR
Warranty Special UOM TX
Country of Origin (Primary) IN
Harmonized Tariff Code (HTS) 4010390000
Harmonized Tariff Code (Schedule B) 4010390000
Canadian Harmonizing Tariff Code 4010390000
UPC 00195199102304
VMRS Code 065005003
UNSPSC 26111801

GOODYEAR BELTS 28583 Part Interchanges

Brand Part Number
Gates TR28583
Dayco 28580
OEM Part Number 04121-12241, 04121-22258, 141062, 178668, 189584, 3040398, 310267-C1, 328540-R1, 371276-C91, 4346763, 4359775, 8M9708, D1102-5975, DA5928-1, GT28586, GTFL192, V1090152
Continental 28583, 28593
Cummins 189584

GOODYEAR BELTS 28583 Fits Vehicles

  • Peterbilt 353 (1983)
  • Peterbilt 352 (1981)
  • Peterbilt 379 (1987-1994)
  • Peterbilt 377 (1987-1994)
  • Peterbilt 362 (1981-1996)
  • Peterbilt 357 (1987)
  • Peterbilt 359 (1981-1987)
  • Peterbilt 378 (1988-1989, 1991-1994)
  • Peterbilt 282 (1967-1980)
  • Suzuki Aerio (2002)
