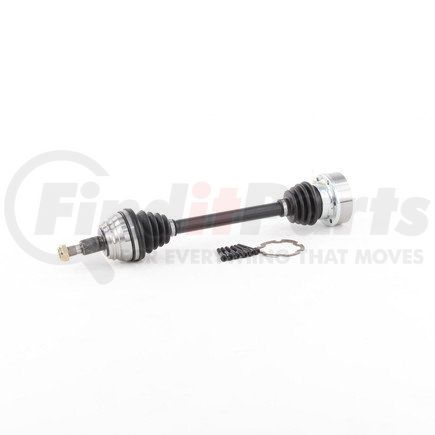

(888) 312-8812 Login SignupTRAKMOTIVE VW8017 CV Axle Shaft
Tap to view 1 more
$10149
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
TRAKMOTIVE VW8017 Part Description
TRAKMOTIVE VW8017 Specifications
Product Attributes
| ABS Ring Tooth Count | 0 |
| ABS Ring Type | N/A |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .56 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1.67 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.33 |
| Axle Nut Length (mm) | 35 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | .25 |
| Inboard Bolt Head Size (mm) | 6 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.29 |
| Inboard Bolt Length (mm) | 58 |
| Inboard Bolt Thread Size | M8x1.25 |
| Inboard Joint Type | Bolt-On |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 36 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.01 |
| Overall Compressed Length (mm) | 559 |
| Axle Nut Socket Size | 30 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084097170 |
TRAKMOTIVE VW8017 Part Interchanges
| Brand | Part Number |
|---|---|
| ARC | 80-5886 |
| EMPI | 80-6839 |
| Mevotech | CV7096 |
| Carquest | 410440, 800440 |
| USA Industries | 708730, AX-9127, AX-9540, AX-9542 |
| American Remanufactured | 40-18881 |
| Diversified Shafts Solutions | 2305N |
| Drive Tech America | VW-8851 |
| Fenwick | CV3855 |
| CARDONE Reman | 60-7256, MP7256 |
| IMC | 40754061 |
| Carquest Premium AC | NCV72052 |
| OEM Part Number | 1J0407271AF, 1J0407271B, 1J0407271DF, 1J0407271EN, 1J0407271FN, 1J0407271H, 1J0407271JD, 1J0407271QF, 1J0407271QG |
| Altrom Group | 652737 |
| TrakMotive | VW-8017 |
| ProTech | VW10506 |
| N/A | 410440, NCV72052, 75970, MX-18813, 349017, 303161 |
TRAKMOTIVE VW8017 Fits Vehicles
- Volkswagen Clasico (2012)
- Volkswagen Jetta (1999-2005)
- Volkswagen Golf (1999-2002, 2005-2007)
- Volkswagen Beetle (1998-2003, 2005)
