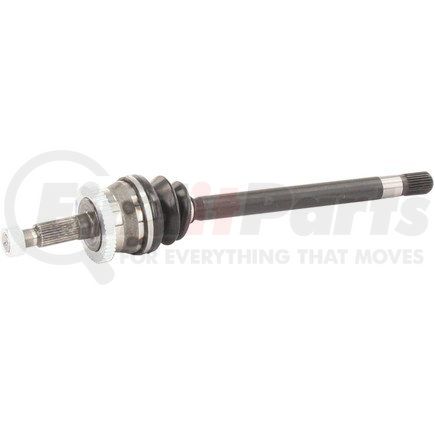

(888) 312-8812 Login SignupTRAKMOTIVE CH8035 CV Axle Shaft
Tap to view 1 more
MSRP: $93.49
$6549
Save $28.00
Limited availability at this price!
In Stock
Get it by Monday, Dec 22
TRAKMOTIVE CH8035 Part Description
TRAKMOTIVE CH8035 Specifications
Product Attributes
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .71 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.57 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | N/A |
| Inboard Shaft Connection Style | N/A |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.23 |
| Overall Compressed Length (mm) | 590 |
| Axle Nut Socket Size | 35 |
| Grade Type | Premium |
| Inboard Joint Boot Material | N/A |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084010353 |
TRAKMOTIVE CH8035 Part Interchanges
| Brand | Part Number |
|---|---|
| ARC | 80-5663 |
| EMPI | 80-0611 |
| Car Components Technologies (CCT) | 9115 |
| Mevotech | CV1020 |
| Carquest | 411058 |
| USA Industries | 7091159, AX-91159 |
| Prestige Autotech | 4909 |
| American Remanufactured | 40-25025S |
| Diversified Shafts Solutions | 2263N |
| Drive Tech America | DC-25025A |
| Fenwick | CV2097 |
| CARDONE Reman | 60-3300, 66-3300, MP3300 |
| OEM Part Number | 5012749AA, 5012749AB, 5012749AC, 5080527AA, RL012749AC, RX012749AC |
| ODM | CH-8-8562A |
| TrakMotive | CH-8035 |
| ProTech | JP10505 |
| N/A | 411058, NCV82510, 74011, 139035 |
TRAKMOTIVE CH8035 Fits Vehicles
- Jeep Grand Cherokee (1999-2004)
TRAKMOTIVE CH8035 Cross References
We have 1 alternatives for the CH8035 by TRAKMOTIVE:
TRAKMOTIVE CH8035 Customer Reviews
No reviews yet
Be the first to review this product!
